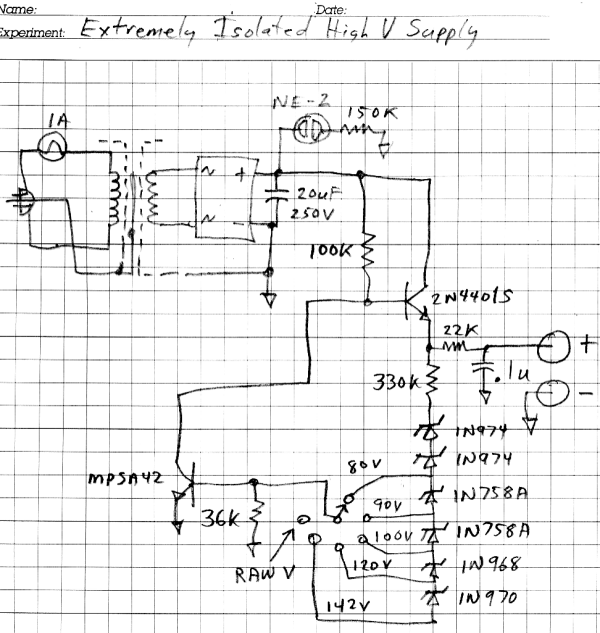

Extremely Isolated HV Supply

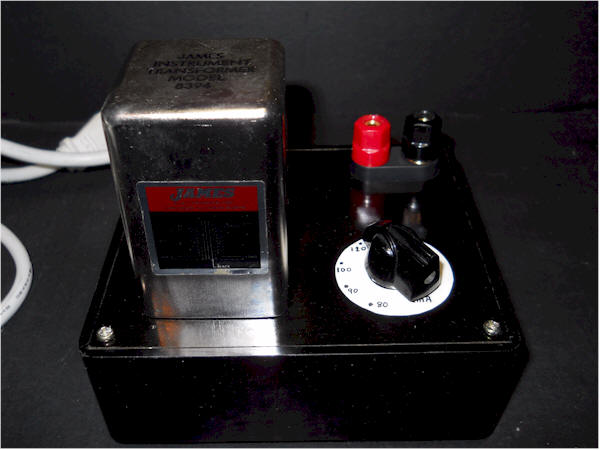

This supply features a double box shielded James transformer (Model 8394), normally used for signal isolation. This supply can only source a couple of mA, but the line isolation is near perfect.

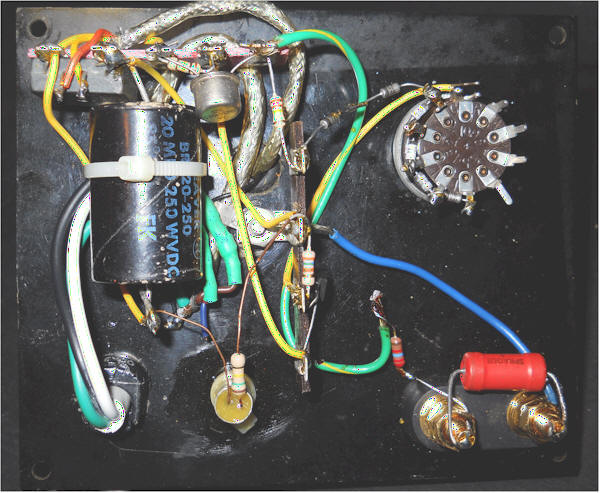

Simple construction using terminal strips and point-to-point wiring:
